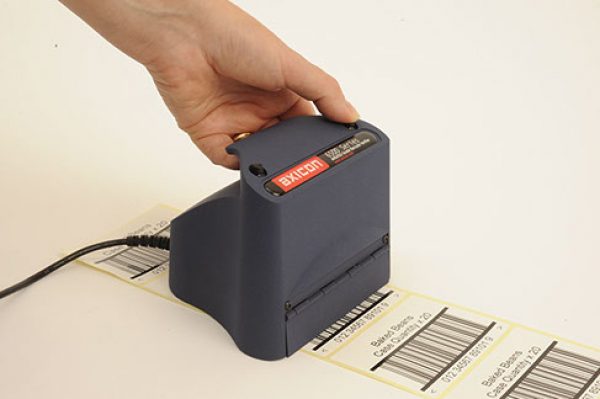

Axicon 6515

The Axicon 6515 midrange barcode verifier is designed to verify linear barcodes with a maximum width, including quiet zones, of 125 mm or 4.9″. This means it can be used to check all GS1 symbols used at the retail point-of-sale (EAN-13, EAN-8, UPC-A and UPC-E, GS1 Databar), those used on outer cases (EAN-13, ITF-14, and GS1-128), and on logistics labels (GS1-128). For anyone printing barcode labels using a 100 mm (4 inch) wide printhead, this verifier is perfect.

It cannot be used to check 100% sized ITF-14 symbols, or A5 sized logistics labels printed using a 150 mm (6 inch) wide printhead.

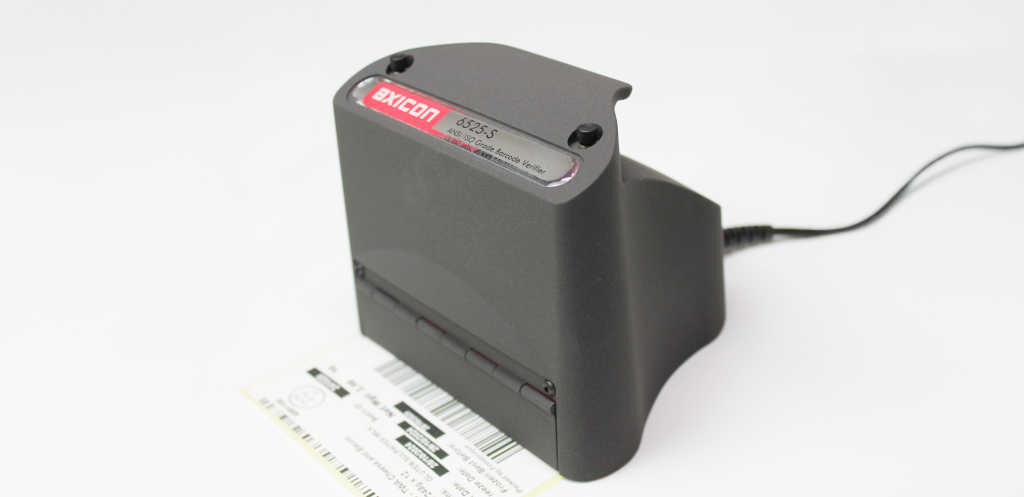

The ‘S’ range of Axicon verifiers (6525-S) has a continuous scan feature, which means that obtaining at least ten different readings throughout the height of the barcode (as required by ISO/IEC) is much faster. Simply place the verifier slightly above or below the barcode, press the trigger and slide the verifier over the code – in less than a second you can have results of up to 100 scans of the code at different points in the bar height.

Features & Benefits

ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis. Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.

An IP-50 version is available for the 6515 and 6525-S verifiers.
